ST7004B

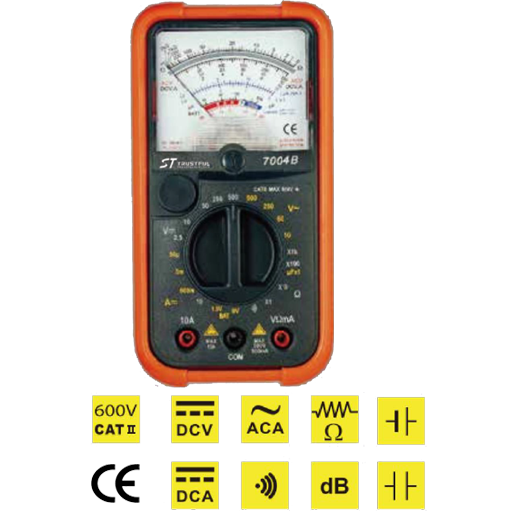

Model No.: ST7004B Analog Multimeter
ü Universally usable multi-functional instrument
ü lirror scale feature for accurate reading
ü 20 ranges in 8 functions
ü Overload protection
ü AC/DC voltage measurement up to 500V
ü DC current measurement up to 10A
ü Resistance measurement up to 2MΩ
ü Audible continuity and diode tests
ü Battery test 1.5V and 9V
ü Fuse: F500mA/250V
ü Input impedence: 20KΩ /VDC, 9 KΩ /VAC
ü Accessories included: 1.5V battery, elastomer boot, test leads, English manual,blister card
